Cubish Portabox

Smart wallbox with control electronics TYP2-CEE 16A/32A (400V) with maximum power up to 11kW (3x16A)/22kW (3x32A). Small, lightweight, easily portable - charge at home or on the go with just one device. More info

I'm interested Product sheet

Charging power 11 - 22 kW

Wifi / Hotspot

Integrated current protector

Current settings 6 - 32A

Cooperation with FVE

MATERIAL

Aluminium alloy / UV resistant ABS plastic

ADJUSTABLE POWER

1.4 - 22 kW

CHARGING TYPE

AC (IEC 61851-1)

ADJUSTABLE CURRENT

6A - 32A (incremental 1A) or in 7 steps by button

RATED VOLTAGE

230V (one phase) / 400V (three phases)

ADJUSTABLE PHASES

1 or 3 phase via application

ELECTRICAL PROTECTION

Current protector A-EV (30mA AC, 6mA DC)

RATED VOLTAGE

230V (one phase) / 400V (three phases)

DIMENSIONS

258 x 119 x 105 mm (H x W x D)

AUTHORIZATION

Automatic / 0-10 V / OCPP backend

STATUS DISPLAY

Button with LED indication / OCPP backend

CONEKTIVITY

Wifi, Bluetooth, LTE Cat-M, OCPP, Modbus TCP

DYNAMIC POWER CONTROL

Wireless

API

Yes

GUARANTEE

4 years

Parameters

The Cubish Portabox portable charging station for electric cars: fast and convenient charging anywhere!

VARIATIONS
Basic – basic variant, control by button with LED
Basic+ – control by button with LED, control by 0-10V standard, RS485 communication
Fleet – version with data SIM card, OCPP integration

In combination with our standard TYP 2 cable -> TYP 2, this smart and portable wallbox extends the charging possibilities for electric vehicles. It will be used especially in places where there is no charging stand, station or wallbox, but at the same time an industrial CEE socket is available – i.e. in houses, garages, workplaces. With this portable wallbox for electric vehicles, you’ll be ready to charge anywhere, while taking up less space in your car. This portable wallbox for electric cars was selected for the Tesla round the world project, when the crew of Mr. Zdeněk Martínek set off on a round-the-world journey in a Tesla electric car. You can follow their journey here.

Made in the Czech Republic.

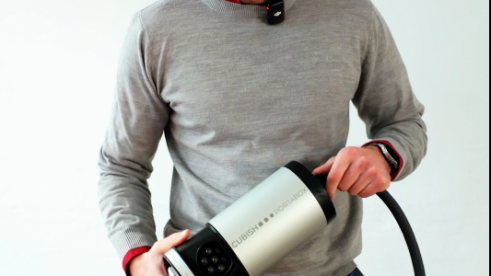

Introducing the Cubish Portabox portable charger

DetailsDetails

Product benefits

Automatic update

PMW signal control

Using the 0-10V standard, you can control the charging current value with your own master system (e.g. wattrouter, homeassistant). The function is included in the “basic+” variant and is connected via a connector with IP protection.

Integrated protection

Thanks to in-house development, the portable charging station is equipped with protection against leakage current, overvoltage and undervoltage. The switching elements are rated for more than 150% of the rated continuous load. The control electronics performs self-diagnosis and displays error codes.

Dynamic load management

By continuously measuring the free power capacity, the charging station automatically reduces or increases the charging power to avoid overloading the circuit breaker and exceeding the reserved power of the building. This technology ensures maximum available charging power at all times.

OCPP communication

If you use a charging station in your company fleet, it can be connected via OCPP to a remote management system and your charging sessions will be automatically synchronised.
